It's Right For You If...
You want to get out and ride more, and you're looking for performance where it really counts: a lightweight frame, wide range of gearing, bigger tires, and tons of mounts for securing fenders, bags, and gear. You also want a great value and the confidence of Trek's lifetime warranty.
♡ Why You'll Love It ♡
- FX 1 is a versatile ride that does whatever you want it to do, whether that's riding for fitness, commuting, or cruising to the farmer's market to pick up groceries
- It's easy to accessorize with racks, a kickstand, fenders, lights, and more!
- Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners
The Tech You Get
A lightweight aluminum frame, 21 speeds so there's always a right gear for your terrain, strong double-walled wheels with wide, stable tires, and mounts that make it easy to accessorize your ride with racks, fenders, lights, fitness trackers, a kickstand, and more!
The Final Word

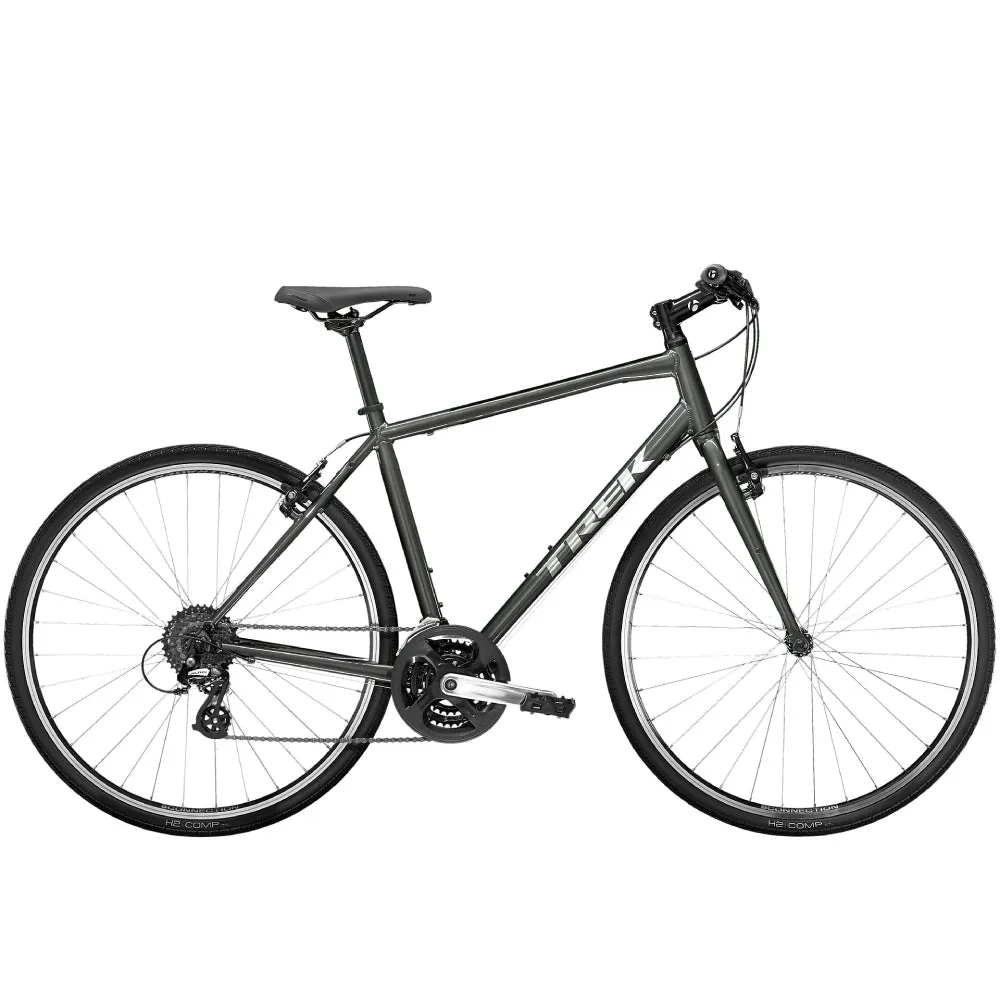

FX 1 is a versatile hybrid bike at a great value. It's built with a lightweight aluminum frame, performance parts that keep the price in check, and strong wheels built on double-walled rims. This hybrid is perfectly suited to a variety of uses, from casual riding to exercise and commutes.
SPECS
| FRAMESET | |
| FRAME | Alpha Gold Aluminum, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR |
| FORK | FX Steel, threadless steel steerer, rack mounts, cantilever-brake mount, 405 mm axle-to-crown, 5x100 mm QR |
| WHEELS | |
| FRONT HUB | Formula FM21 alloy, 100x5mm QR |
| REAR HUB | Formula FM31 alloy, 135x5mm QR |
| FRONT SKEWER | Formula QR22 |
| REAR SKEWER | 152x5mm QR |
| RIM | Bontrager Connection, alloy, double-wall, 32-hole, schrader valve |
| TIRES | Bontrager H2 Comp, wire bead, 30tpi, 700x35c |
| MAX TIRE SIZE | 38c without fenders, 35c with fenders |
| DRIVETRAIN | |
| SHIFTER | Shimano Altus EF500, 7 speed |
| CRANK | Forged alloy, 48/38/28, chainguard, 170mm length |
| FRONT DERAILLEUR | Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull |
| REAR DERAILLEUR | Shimano Altus M310 |
| BOTTOM BRACKET | Sealed cartridge, 68mm |
| CASSETTE | 14-34, 7 speed freewheel |
| CHAIN | KMC Z7 |
| PEDAL | Wellgo nylon platform |
| COMPONENTS | |
| SADDLE | Bontrager Sport |
| SEATPOST | Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| HANDLEBAR | Size: S, M, L: Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width|Size: XL: Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
| STEM | Size: S, M: Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length|Size: L, XL: Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length |
| GRIPS | Bontrager Satellite |
| BRAKE | Tektro alloy linear-pull |
| HEADSET | 1 1/8" steel threadless |
| ACCESSORIES | |
| BAG | Bontrager BITS Internal Frame Storage Bag |
| WEIGHT | |
| BIKE WEIGHT | M - 12.57 kg / 27.72 lbs |
| WEIGHT LIMIT | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
TECHNOLOGY
DuoTrap S Compatible
DuoTrap S (Sold separately) integrates a Bluetooth/ANT sensor into the frame. Log routes and track fitness progress on your computer or smart phone with no external sensor. Works with all major ANT wireless players, including Bontrager, Garmin, PowerTap, and SRM.
Rack & Fender Ready
Built-in mounts make it easy to add racks and fenders for added versatility.
Alpha Gold Aluminum Frame
The high-performance lightweight aluminum is continuously cold extruded and butted, and formed into manipulated tube shapes to balance strength and weight saving.
