Product Details
＋

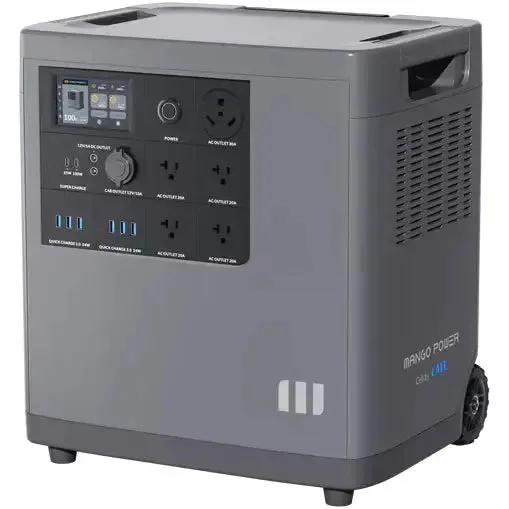

Mango Power E Home Backup and Portable Power Station
- Meet 99% of Your Portable Power and Home Backup Needs
- 240v Split-phase for Heavy-duty Appliances
- Power Your Essential Appliances in the Event of a Power Outage
- World’s Best CATL Ultra-durable LFP Battery Cells

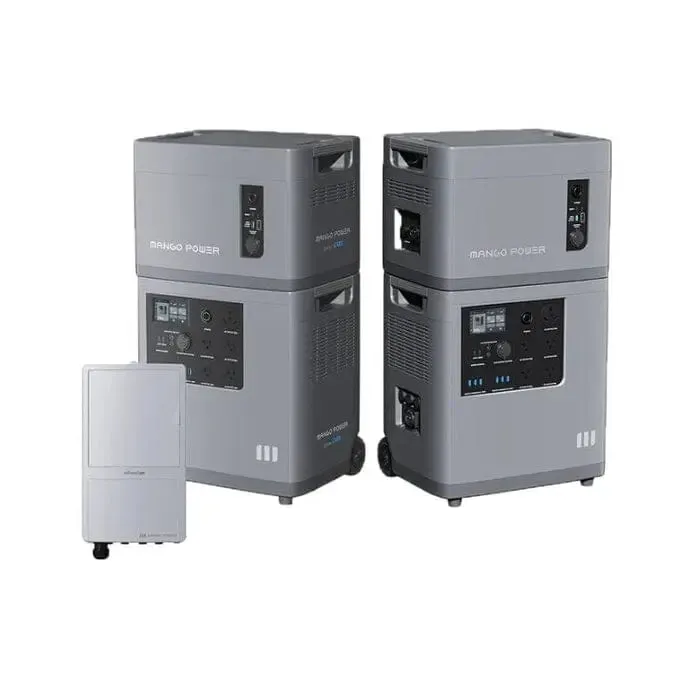

Home Backup Kit Pro(2* Mango Power E 2* Extra Battery mPanel Pro): 6kW/14kWh@240V
3.5 kWh - 14 kWh Capacity
240V Split-Phase for
Use The Same Cells That
The Mango Power E boasts ultra-durable LFP battery cells that are also used in the world's top-performing EVs. These cells not only charge quickly but also have a longer lifespan and greater reliability compared to traditional NCA/NCM battery cells.Even after continuous use, which could span up to five years of constant charging, discharging, and recharging, the Power E's battery cells maintain their peak performance and remain as effective as they were when they were first used.

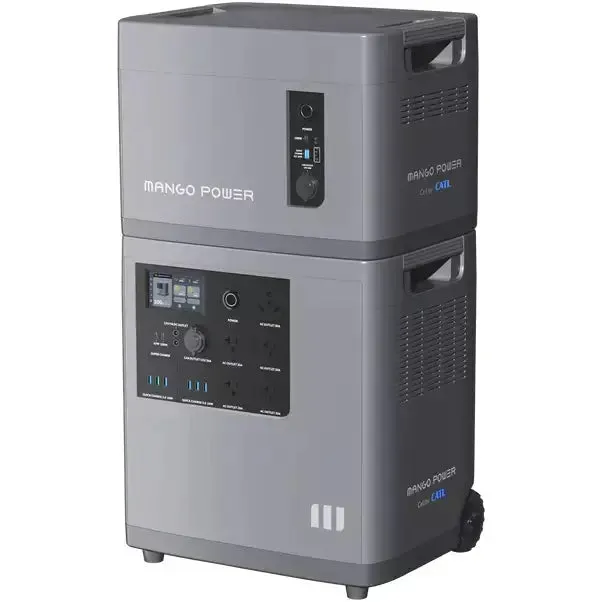

E Batteries to achieve 14000W and 240V capacity for a Whole Home Backup Solution.
3.5 kWh - 14 kWh Capacity
3000W - 6000W AC Output
MANGO POWER E Fully Backup Your Off-Grid Life
240V Split-Phase for
Heavy-Duty Appliances
With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more.
*The mSocket Pro sold separately.
Use The Same Cells That
Power the World’s Best EVs
The Mango Power E boasts ultra-durable LFP battery cells that are also used in the world's top-performing EVs. These cells not only charge quickly but also have a longer lifespan and greater reliability compared to traditional NCA/NCM battery cells.Even after continuous use, which could span up to five years of constant charging, discharging, and recharging, the Power E's battery cells maintain their peak performance and remain as effective as they were when they were first used.
Better Environmental Adaption
CATL's batteries can withstand temperatures from -20°C to 60°C. This allows our power stations to operate smoothly even in extreme cold conditions.SEAMLESS HOME BACKUP
Power Your Essential Appliances in the Event of A Power Outage
By integrating Mango Power’s ecosystem into your home circuit*, you guarantee that at the moment a blackout strikes, you enjoy power security and grid independence with a seamless, uninterrupted flow of electricity powering your lights, refrigerators, computers, and any other essential devices you have plugged in.
*Home circuit backup requires the mPanel accessory, sold separately

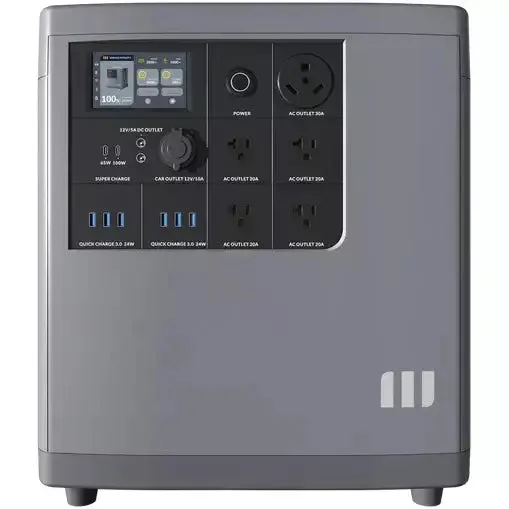

16 x Output Ports
6 Different of Outlets
6 Different of Outlets
Specs of Mango Power E
Mango Power E and Battery Specifications
| Product | Mango Power E | Mango Power E Battery |
| Net Weight | 100 lbs (45.4kg) | 73 lbs (33.18kg) |
| Size | 17.8×13.6×19.4 inches (452x345x494 mm) | 17.8×13.6×12.5 inches(452x345x318mm) |
| Working Temperature | Charging: -20°C~60°CDischarging: -30°C~60°C | Charging: -20°C~60°CDischarging: -30°C~60°C |
| Warranty | 5 years | 5 years |
| Certificates | Meets US and International Safety and EMI Standards | Meets US and International Safety and EMI Standards |
| Quick Charge | Recharge to 80% in 1 hourRecharge to 100% in 1.5 hours | |
| Running Noise | <40dB under no-load<51dB under full-load” | |
| IP level | IP21 | IP21 |
| Capacity Expansion | Can expand the capacity by one E Battery to 7.06kWh | |
| Power Expansion | Can expand the power by two to 6kW | |
| 240V split phase | With mSocket Pro or mPanel (sold separately), can output 240V split phase, 6000W | |
| Home Backup | Support (need mPanel) | |
| Battery | ||
| Battery Capacity | 3.53 kWh | 3.53 kWh |
| Cell Chemistry | World’s best CATL LFP | World’s best CATL LFP |
| Life Span | Capacity Retention >70% after 6000 cycles (@25℃, 0.5C/-0.5C) | Capacity Retention >70% after 6000 cycles (@25℃, 0.5C/-0.5C) |
| Battery Management Systems | Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low-Temperature Protection, Low Voltage Protection, Overcurrent Protection | Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low-Temperature Protection, Low Voltage Protection, Overcurrent Protection |
| Max charging rate | Up to 1.1C | Up to 1.1C |
| Input | ||
| Charging Method | AC Wall Outlet, Solar Panel, EV Charger, Generator | AC Wall Outlet, AC Adapter |
| AC Charging | Max 3000W | Max 3000W (by connected to MPE)/AC Adapter |
| Solar Charging | Max 2000W (60V-150V) | |
| EV AC Charging Spot | Adapter needed | |
| Generator | ||
| Inverter | ||
| Rated AC Output Power | 3000W, 120V AC, 60Hz | |
| Power of Over-load | 3150W|
| |
| Maximum Power Point Trackers | 1x, Support Both Roof and Portable Solar Panels | |
| Inverter Efficiency | Up to 88% | |
| Output | ||
| Output Ports | 16 | 3 |
| AC Output | 4 x 20A | |
| USB-A | 6 x QC 3.0 27W | 1 x QC 3.0 27W |
| USB-C | 1 x PD 65W 1 x PD 100W | 1 x PD 100W |
| Car Power Output | 12V/10A | 12V/10A |
| DC5521 Output | 2x12V/5A | |
| AC RV Port | 30A | |
| Smart Control | ||
| Connection | Bluetooth and Wi-Fi | |
| App Remote Control | Yes | |
| OTA Upgrade | Yes | |
| USB Firmware Update | Yes | |
| Customized Mode | Backup Power Mode / Economical Mode / Time-based Control Mode | |
| Smart Measurement | Yes | |
| Smart Energy and Carbon Footprint Report | Yes | |
| Smart Notifications | Yes | |
| Screen | ||
| Size | 4.3 inches | |
| Touch Screen | Yes | |
| Resolution Ratio | 480 x 800 | |
| Screen pigment | 16.7M colors | |
| Safety | ||
| Smart Self-Check System | Yes | |
